| Model Name |

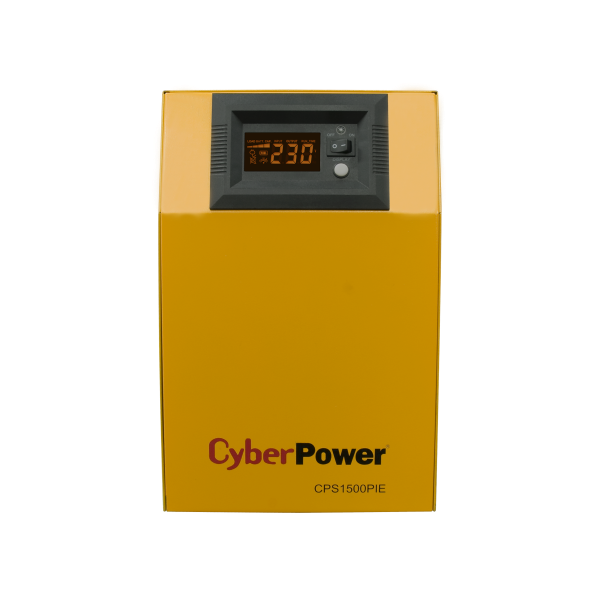

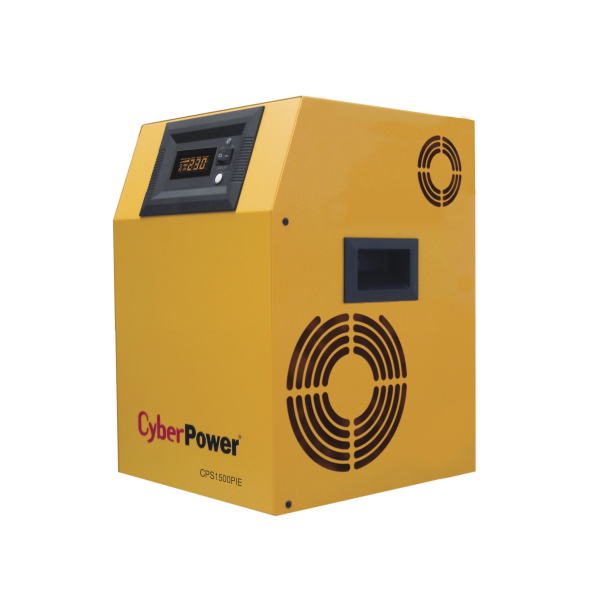

CPS1500PIE |
| General |
|
| Capacity (VA) |
1500 |
| Capacity (Watts) |
1050 |
| Input |
|
| Generator Compatibility |
Yes |
| Nominal Input Voltage (Vac) |
220, 230, 240 |
| Input Voltage Range (Vac) |
140 ~ 300 Vac |
| Input Frequency (Hz) |
50 ± 5, 60 ± 5 |
| Input Frequency Detection |
Auto-sensing |
| Input Connector Type |
Hardwire Terminal Block |
| Output |
|
| Output Waveform |
Pure Sine Wave |
| Output Voltage(s) (Vac) |
220 ± 5%, 230 ± 5%, 240 ± 5% |
| Output Frequency (Hz) |
50 ± 1%, 60 ± 1% |
| Automatic Voltage Regulation (AVR) |
Double Boost, Single Buck |
| Overload Protection (On Utility) |
Circuit Breaker |
| Overload Protection (On Battery) |
Internal Current Limiting |
| Manual Switch |
Bypass Only |
| Outlet(s) - Total |
3 |
| Outlet Type |

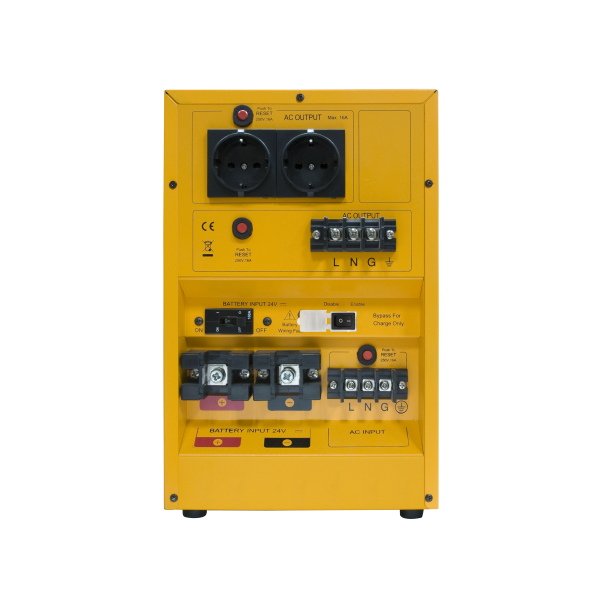

Hardwire Terminal Block x 1, Schuko x 2 |
| Typical Transfer Time (ms) |
10 |
| Surge Protection & Filtering |
|
| Lightning / Surge Protection |
Yes |
| Management & Communications |
Yes |
| LCD Panel |
Power On, Wiring Fault |
| LED Indicators |
Battery Mode, Low Battery, |
| Audible Alarms |
Overload, Overcharge, Overheat |
| Physical |
|
| Wheels |
- |
| Physical Size |
|
| Dimensions (WxHxD) (mm.) |
206 x 325 x 261 |
| Weight (kg.) |
16,40 |
| Environmental |
|
| Operating Temperature (°C) |
0 ~ 40 |
| Operating Relative Humidity (Non-condensing) (%) |
0 ~ 95 |
| Certifications |
|
| Certifications* |
CE, EAC, SONCAP |
| RoHS |
Yes |
| External Battery (Optional) |
|
| Battery Type |
Sealed Lead-acid |
| Battery Voltage (Vdc) |
24 |
