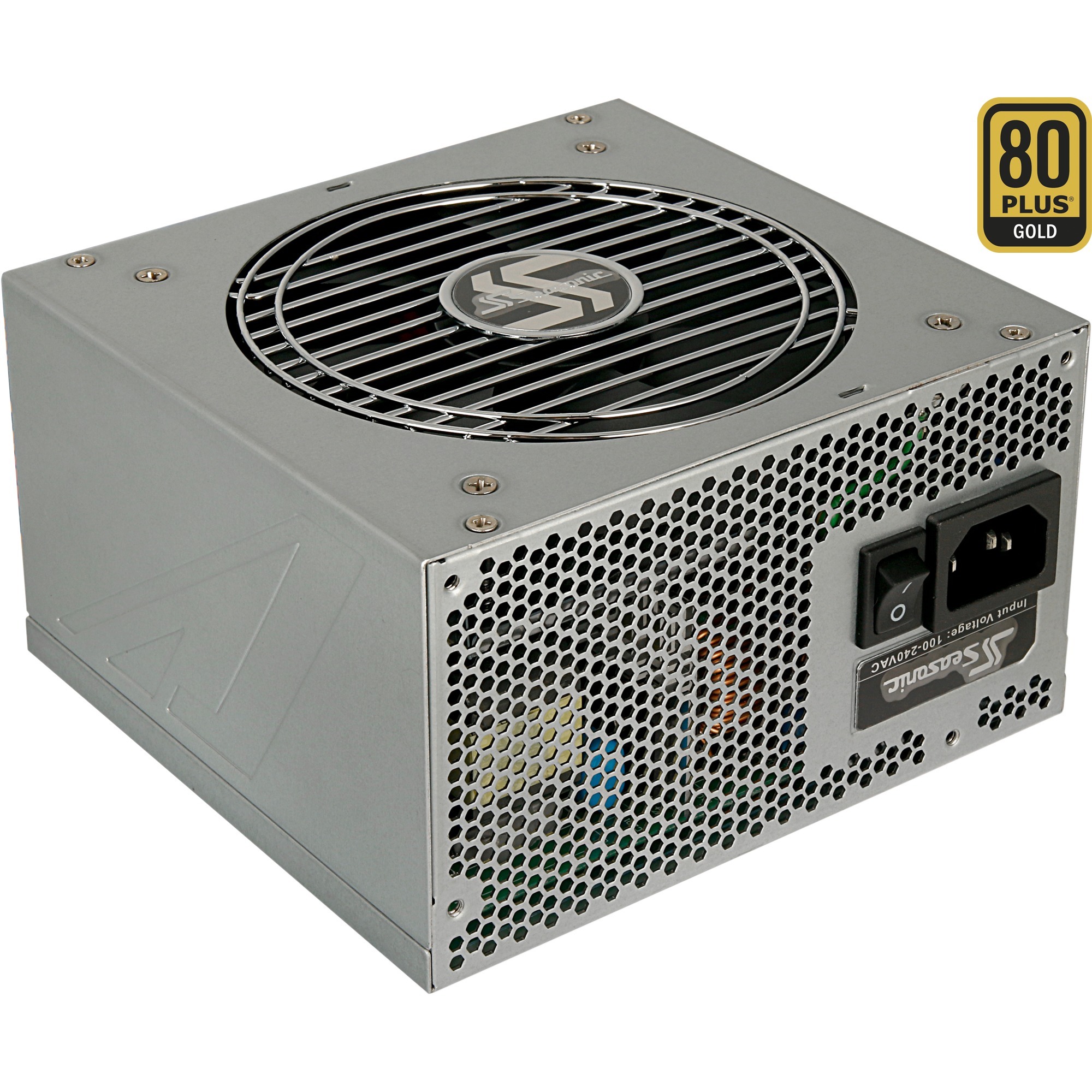

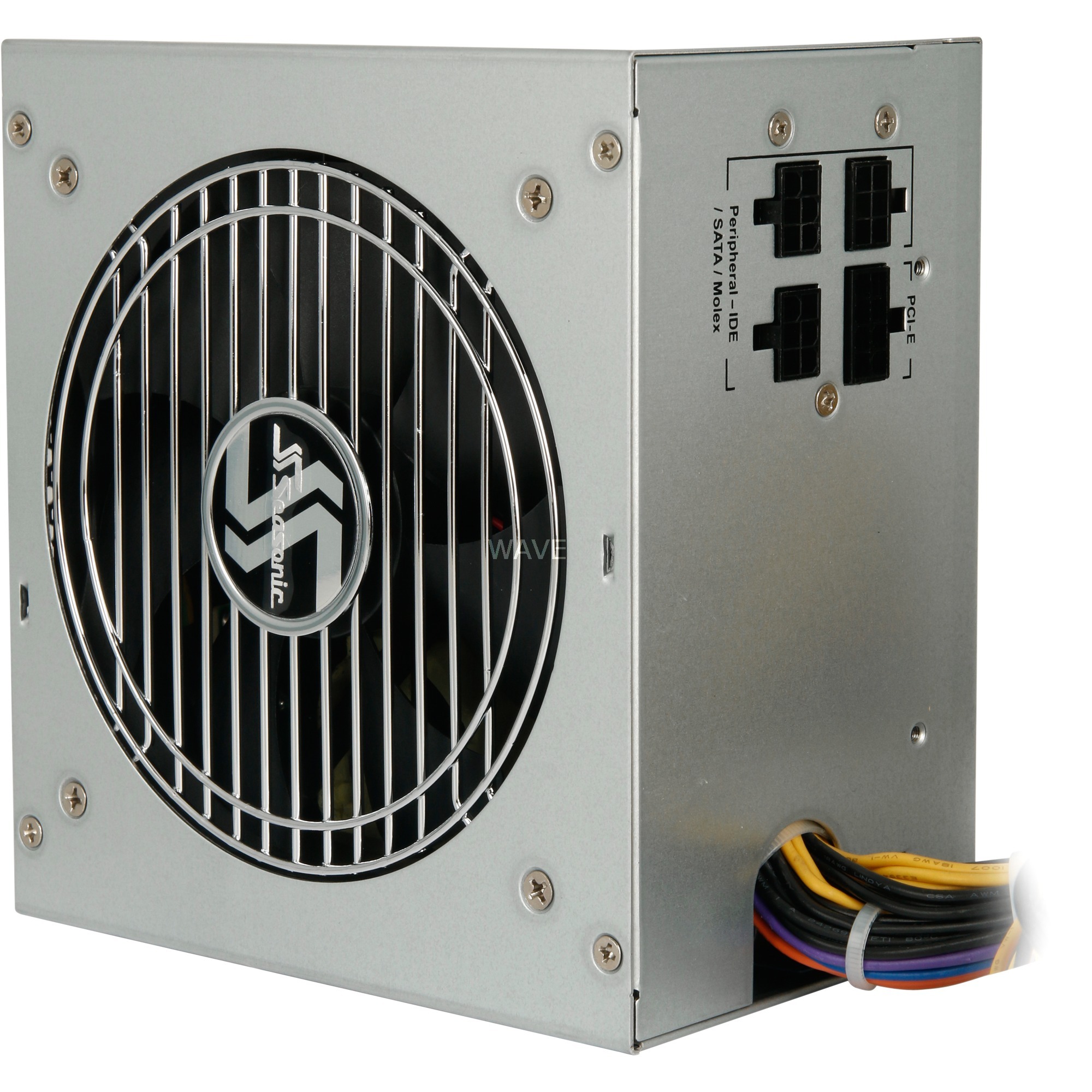

SSP-650CM

Параметри: Power supply 650W, APFC, 12cm fan, ATX 12V v.2.3, 80+ gold, DC to DC converter design, MTBF full load 25? amb. : >100K hours; SSP-650CM
Други: Semi Modular,

Performance	In total	650W
	+12V total	648W
	+3.3V/+5V total	100W
	Input voltage range	100-240 volts
default	ATX12V 2.3
Design	ATX
Certification	80 PLUS Gold
Currents	+3.3V	20A
	+5V	20A
	+5 Vsb	3 A
	-12V	0.3A
	+12 V total	54 A
	+12 V1	54 A
Power factor correction	Active PFC

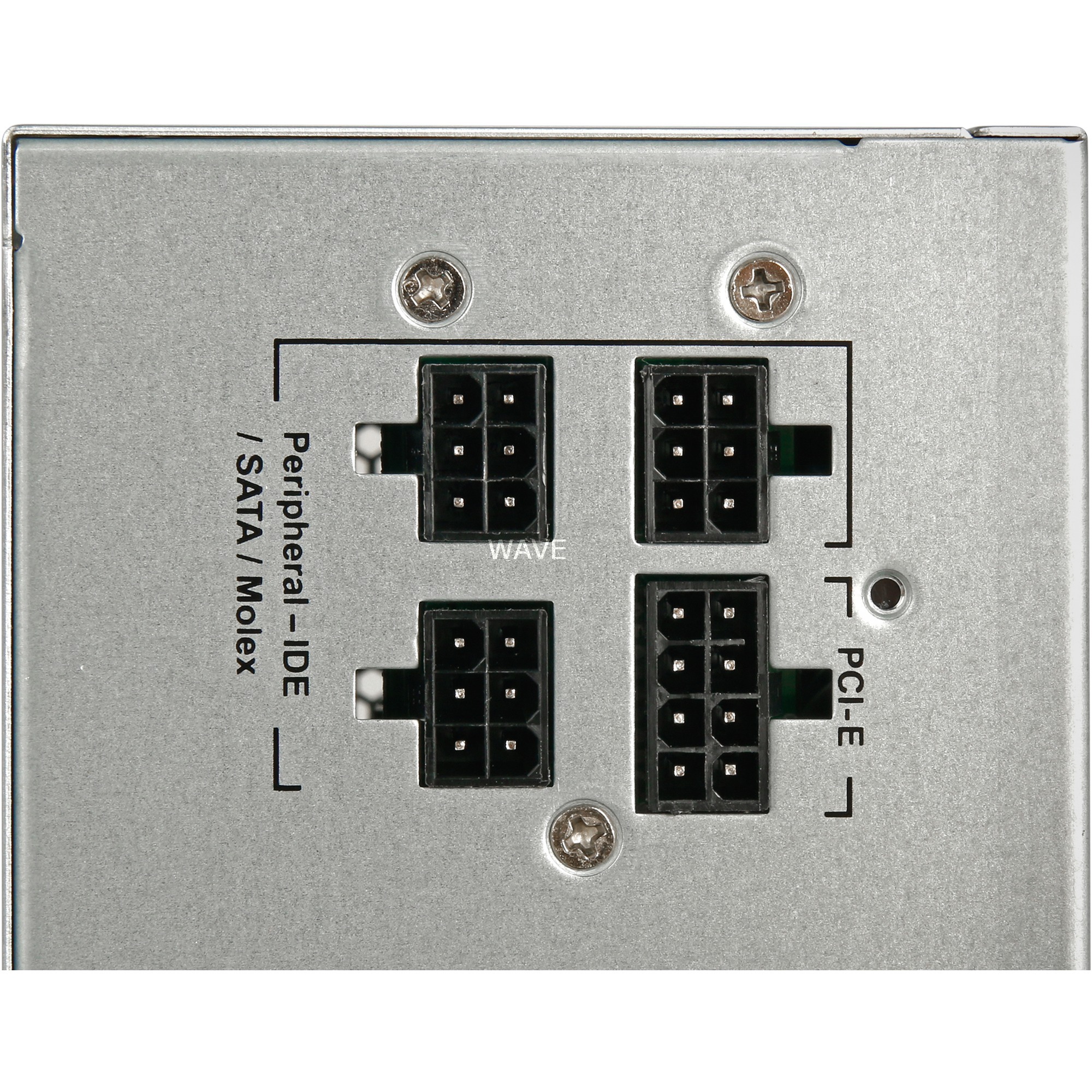

connections	1x 24-pin ATX12V-2.x, 1x 4+4-pin 12V, 6x 4-pin 5.25", 4x 6+2-pin graphics, 1x 8-pin 12V, 6x 15-pin SATA
cooling	Number of fans	1x 120mm fan
	regulation	Temperature controlled
Protective functions	Overvoltage protection (OVP), overload protection (OLP/OPP), short circuit protection (SCP)
Dimensions	Width: 150 mm x Height: 86 mm x Depth/Length: 140 mm
